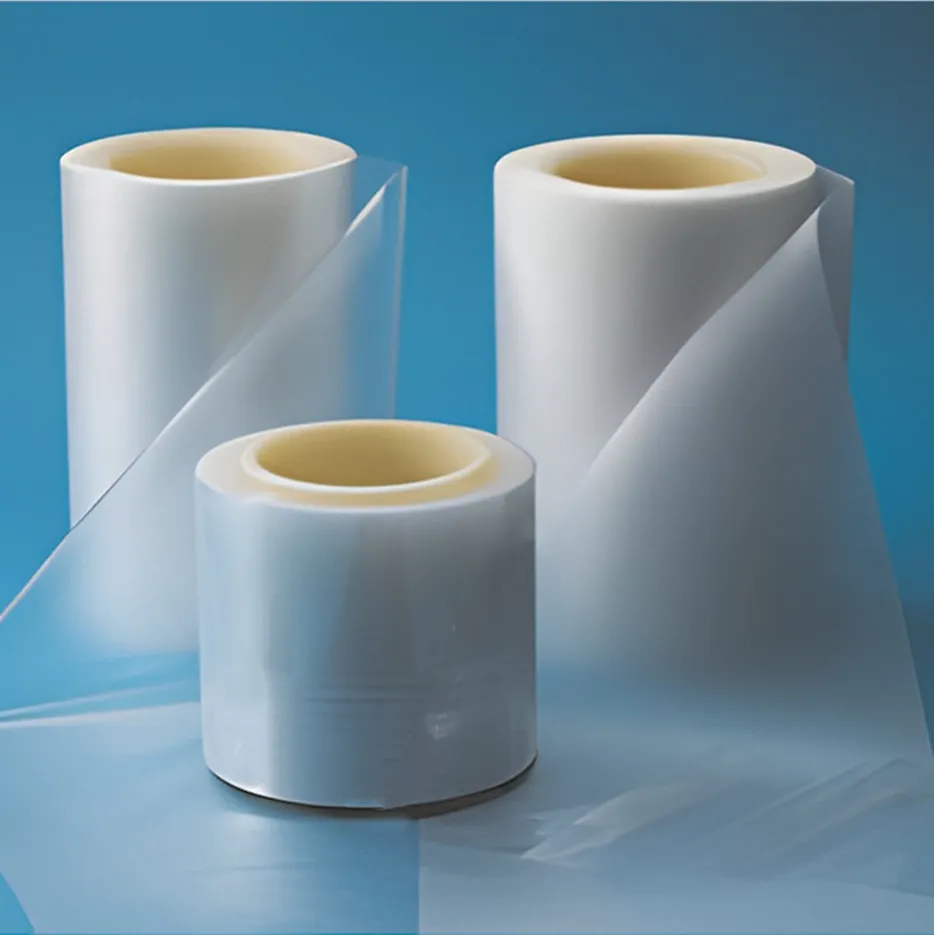

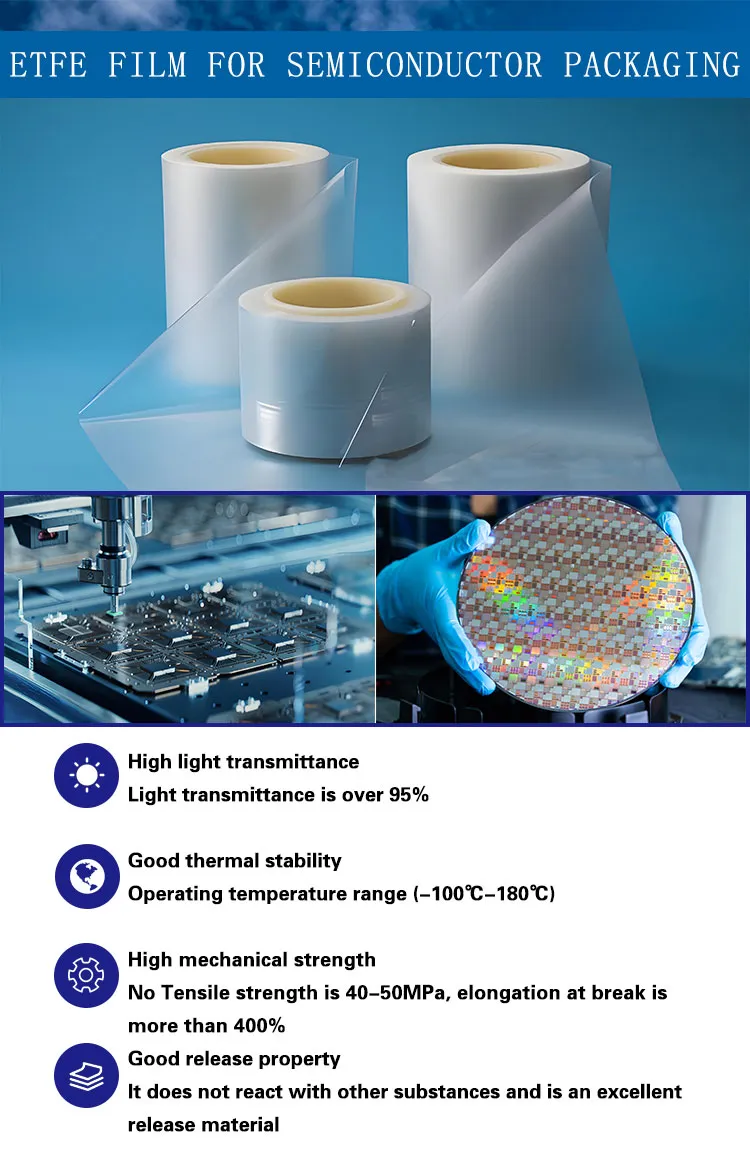

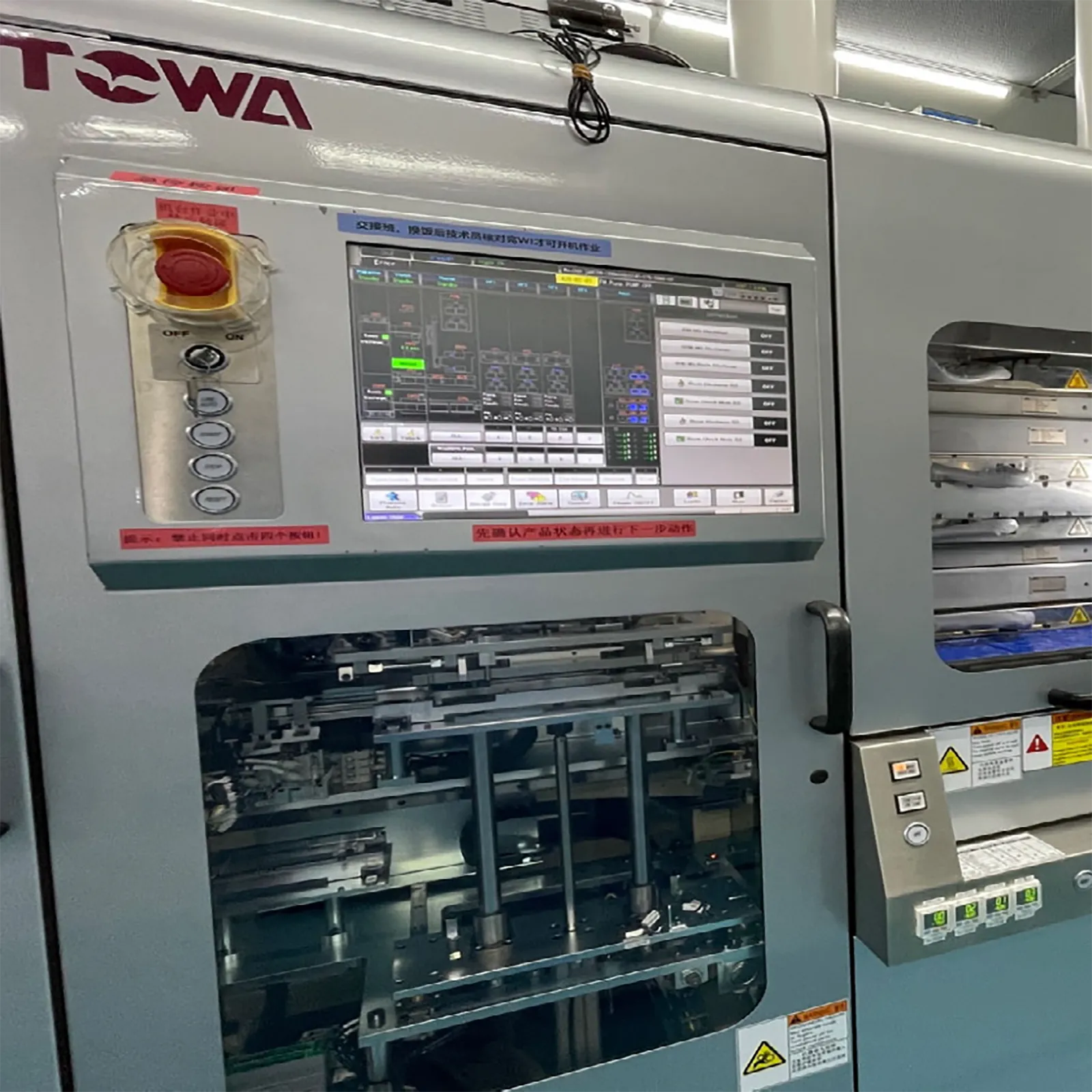

ETFE Film Product Overview
Our high-purity ETFE (Ethylene Tetrafluoroethylene Copolymer) film, engineered specifically for semiconductor manufacturing, delivers extreme environmental stability and functional surface properties. It serves as a critical material in advanced packaging and wafer processing, providing reliable release protection and process support for chip fabrication.
Key Features
Extreme Heat Resistance
Withstands sustained temperatures of 180°C+ with zero dimensional deformation during TCB (Thermal Compression Bonding), reflow soldering, and other processes.
Ultra-Low Release Force
Surface energy < 24 mN/m, enabling damage-free wafer/carrier release and preventing micro-contamination (LPD ≤ 0.1 particles/cm²).
Nano-Scale Chemical Inertness
Resists strong acids (HF/H₂SO₄), alkalis, photoresist solvents, and plasma corrosion. Class 1000 cleanroom certified purity.
Dielectric Insulation Barrier
Volume resistivity > 10¹⁶ Ω·cm, dielectric strength 120 kV/mm, effectively isolating high-frequency signal interference.
Optical Clarity & UV Stability
92% UV-Vis light transmittance for lithography alignment and in-line inspection. Zero performance degradation after 50kGy irradiation.

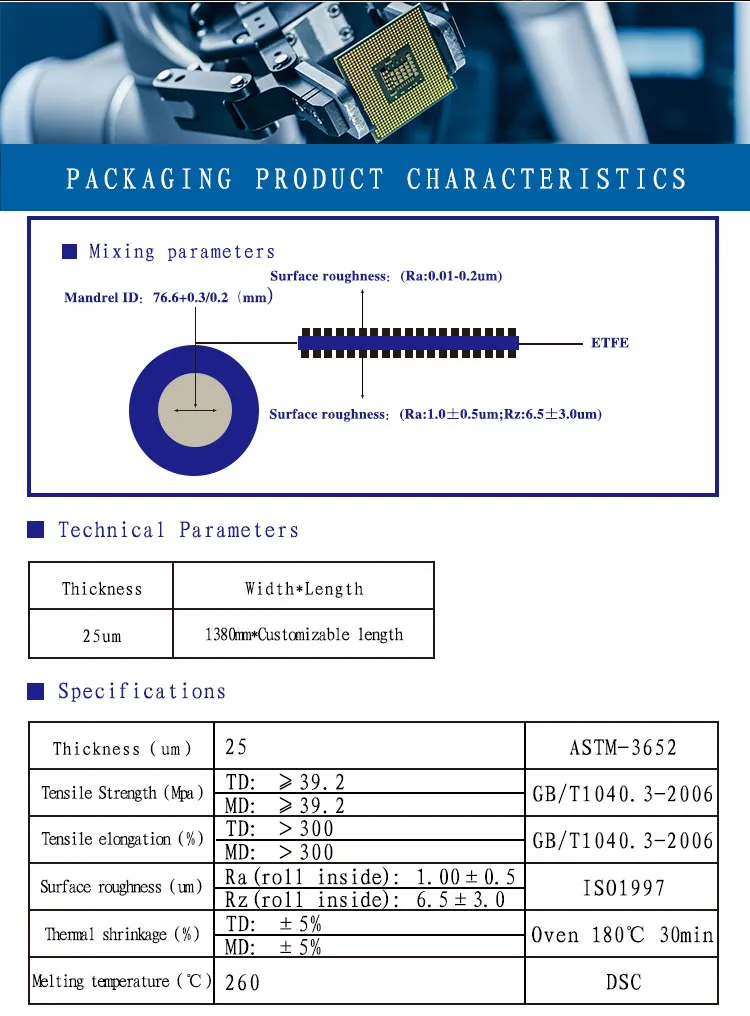

Precision Mechanical Control
Tensile strength ≥35 MPa, thermal shrinkage <0.5% (@200°C/1h), ensuring micron-level process tolerance.
Unmatched Advantages
✅ Improved Yield Rate
Ultra-clean release surface → Reduces wafer breakage risk, lowering defect rates by 30%+ (validated data).
✅ Pushing Process Limits
300°C thermal stability → Supports thermal processes for 3D IC, Fan-Out, and other advanced packaging.
✅ Reduced TCO (Total Cost of Ownership)
Chemical corrosion resistance → Lifespan 5× longer than conventional PI films, minimizing equipment downtime.
✅ Ensuring Process Safety
Zero halogen release (compliant with IEC 61249-2-21) → Eliminates corrosion risks in precision circuits.
Typical Semiconductor Applications

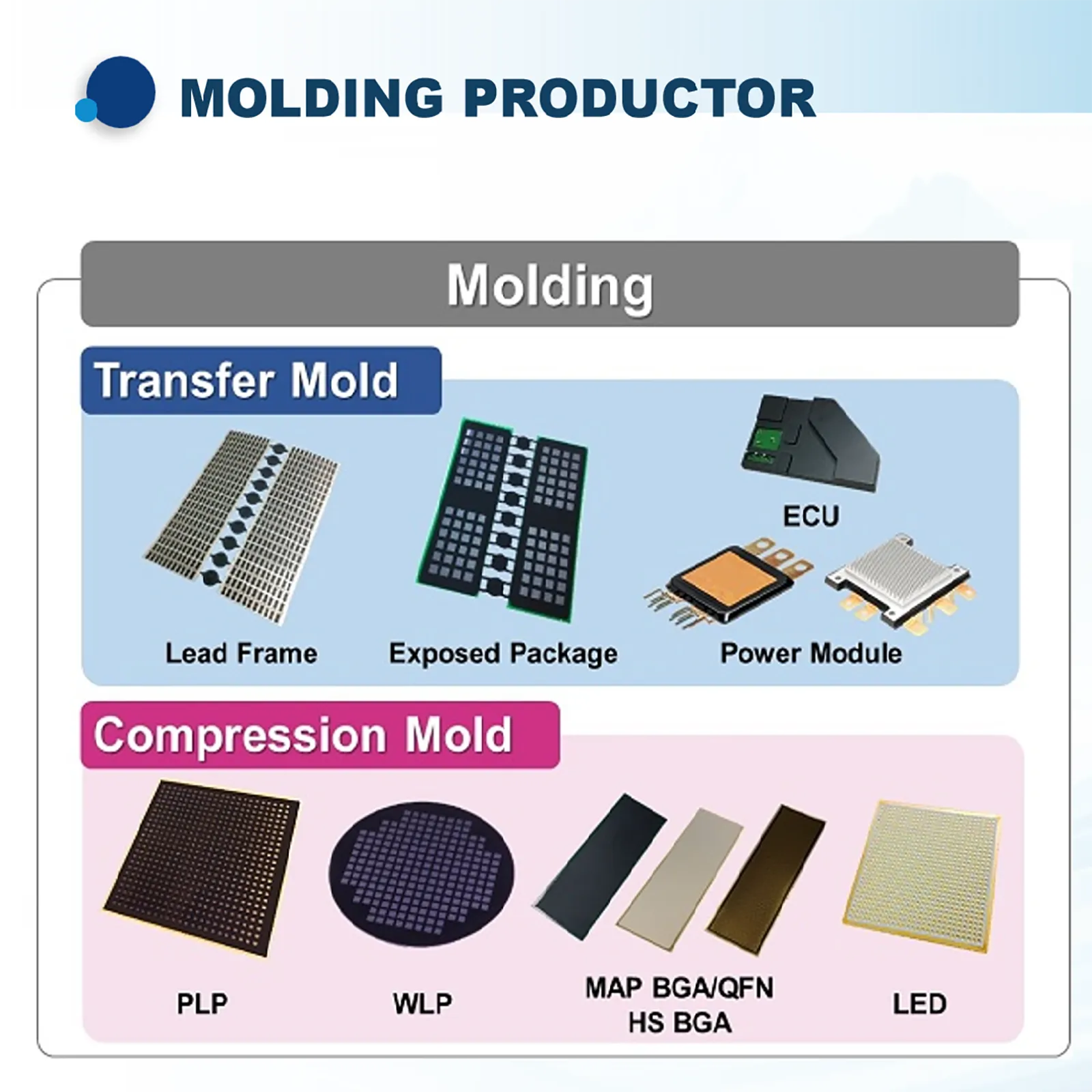

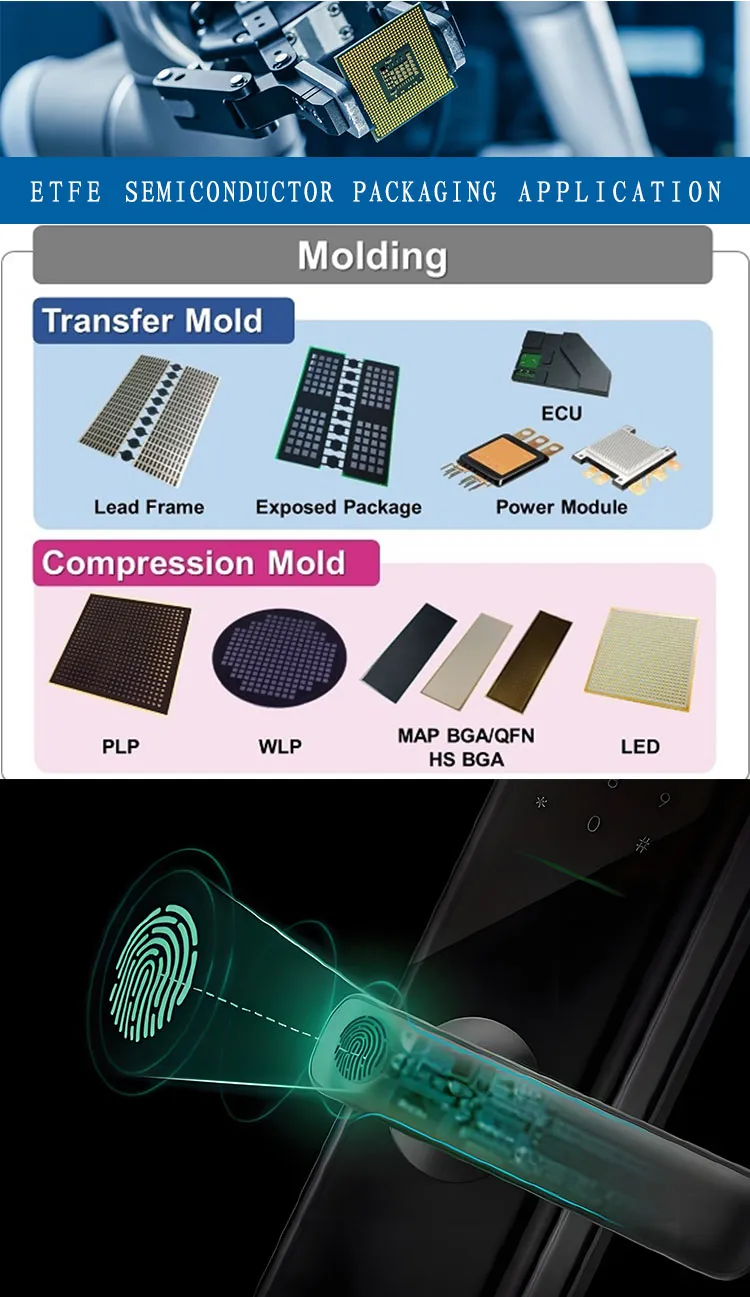

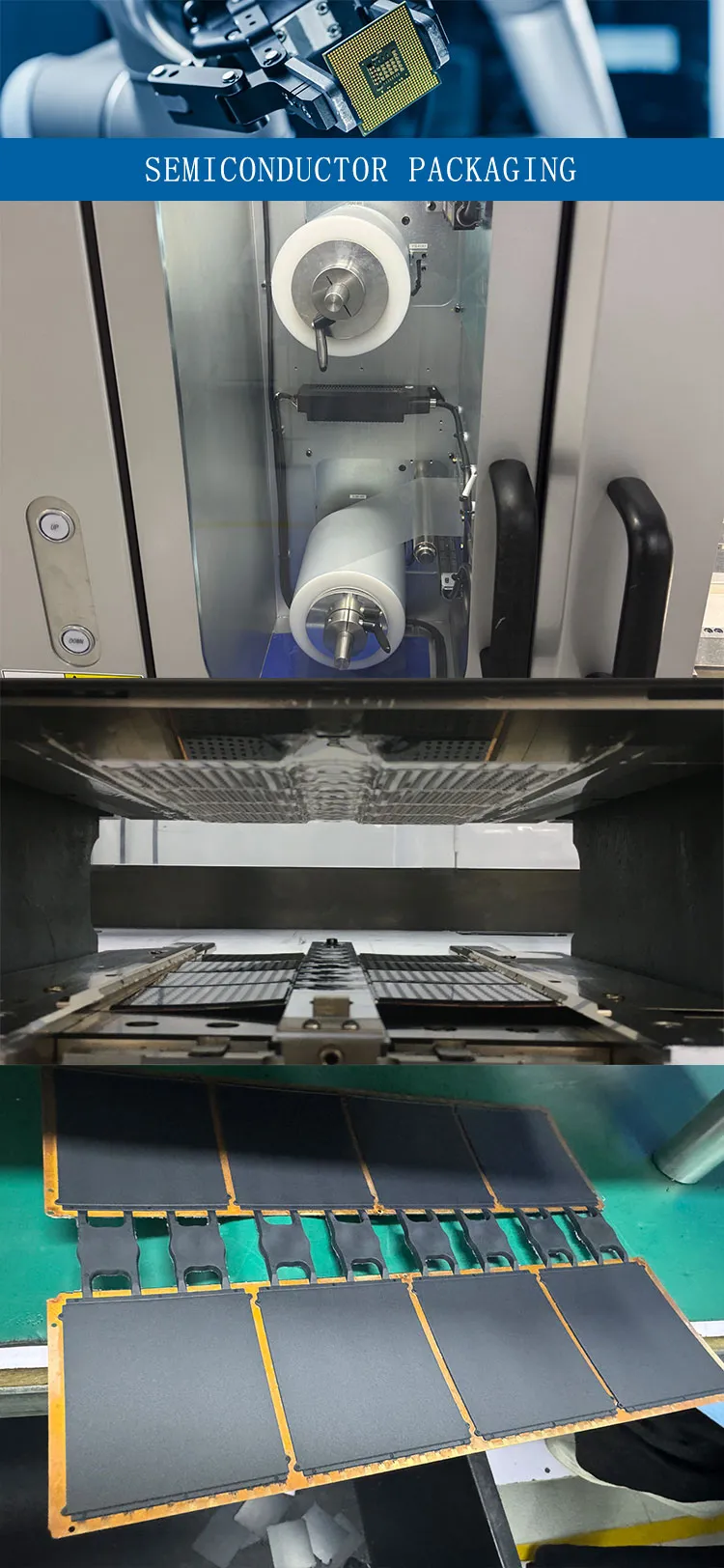

1. Advanced Packaging

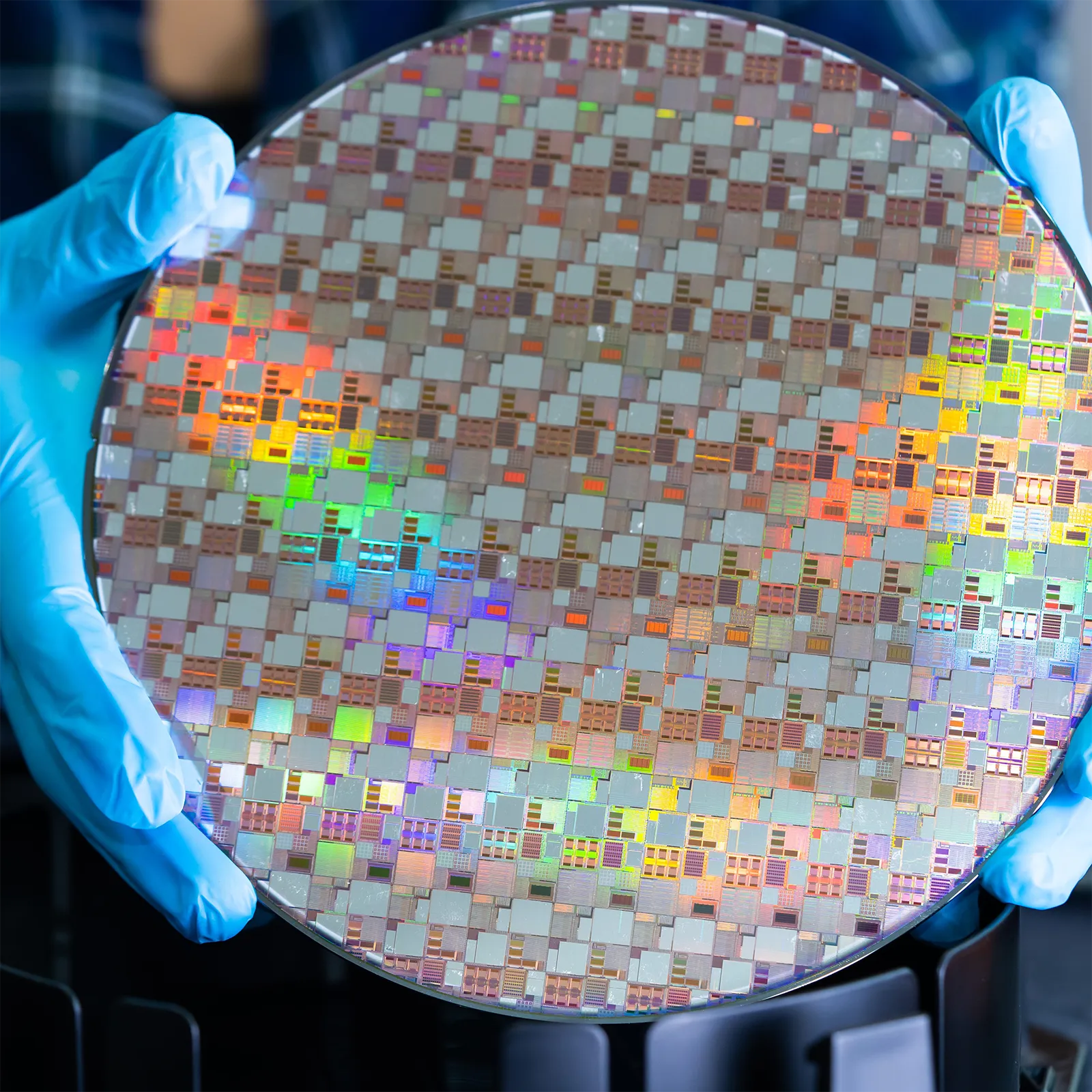

Wafer-Level Packaging (WLP): Temporary bonding/debonding carrier films for residue-free release of 12-inch wafers at high temperatures.
Die Attach: High-temperature tape substrate for epoxy curing thermal shock resistance.
RDL (Redistribution Layer): Photomask carrier ensuring micron-level circuit pattern transfer accuracy.
2. Front-End Processes
Photoresist Carrier Films: UV-stable transparent layer for EUV/DUV photomask protection.
Wet Etch Isolation: Acid bath wafer basket liners resistant to prolonged BOE/H₃PO₄ exposure.
CMP Polishing Pad Films: Nano-level planarization surfaces assisting wafer global flattening.
3. Equipment & Consumables
Semiconductor Equipment Sealing: High-temperature seals for vacuum chambers/etching tools in ultra-high vacuum (10⁻⁸ Pa) environments.
FOUP (Front-Opening Unified Pod) Liners: Anti-static coated films blocking AMC (Airborne Molecular Contaminants).
Probe Card Insulation Layers: Microporous dielectric films for MEMS probe high-frequency testing.
Differentiated Technological Value
▶ Ultra-Pure Material System: Metal ion content <1 ppb (Na⁺, K⁺, Ca²⁺, etc.), SEMI F57 certified.
▶ Micro-Environment Customization: Surface modifications including anti-static (10⁶-10⁹ Ω/sq) and hydrophobic (contact angle >110°) options.

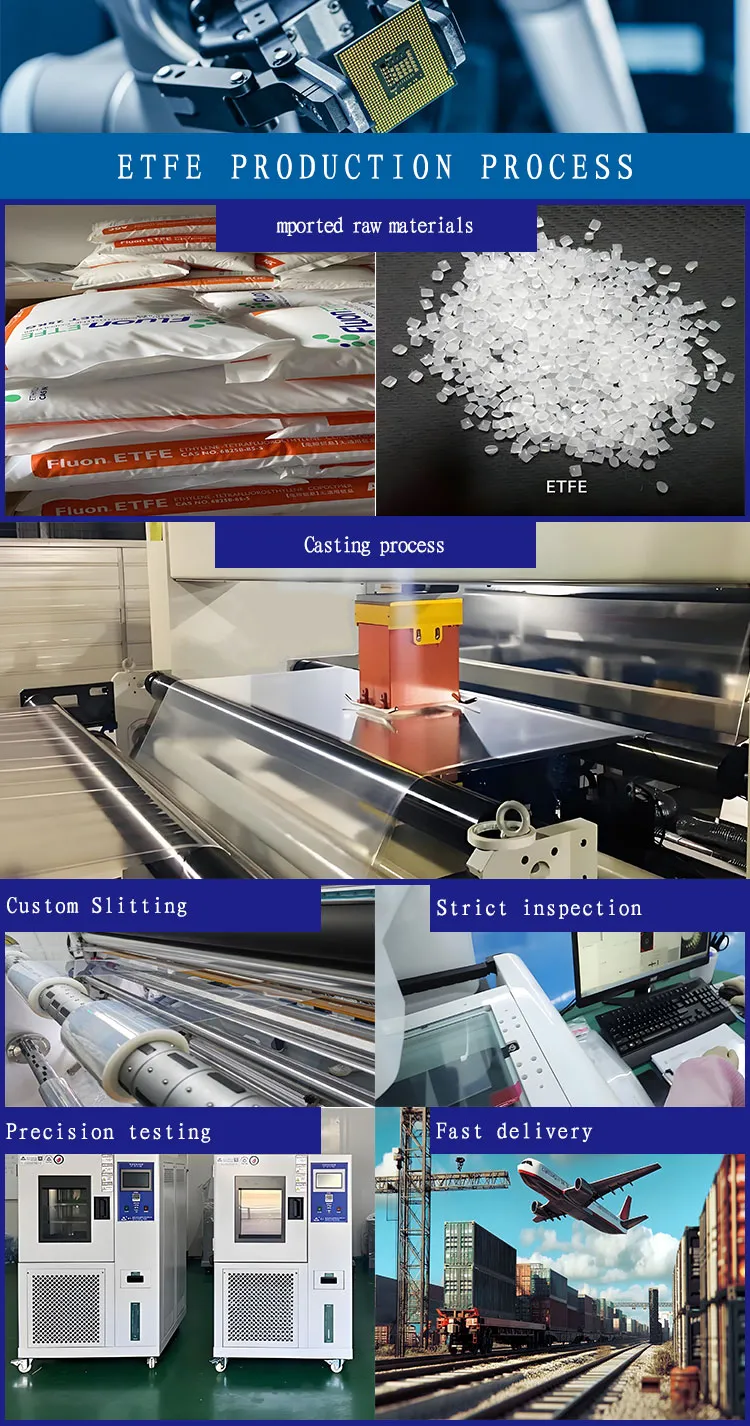

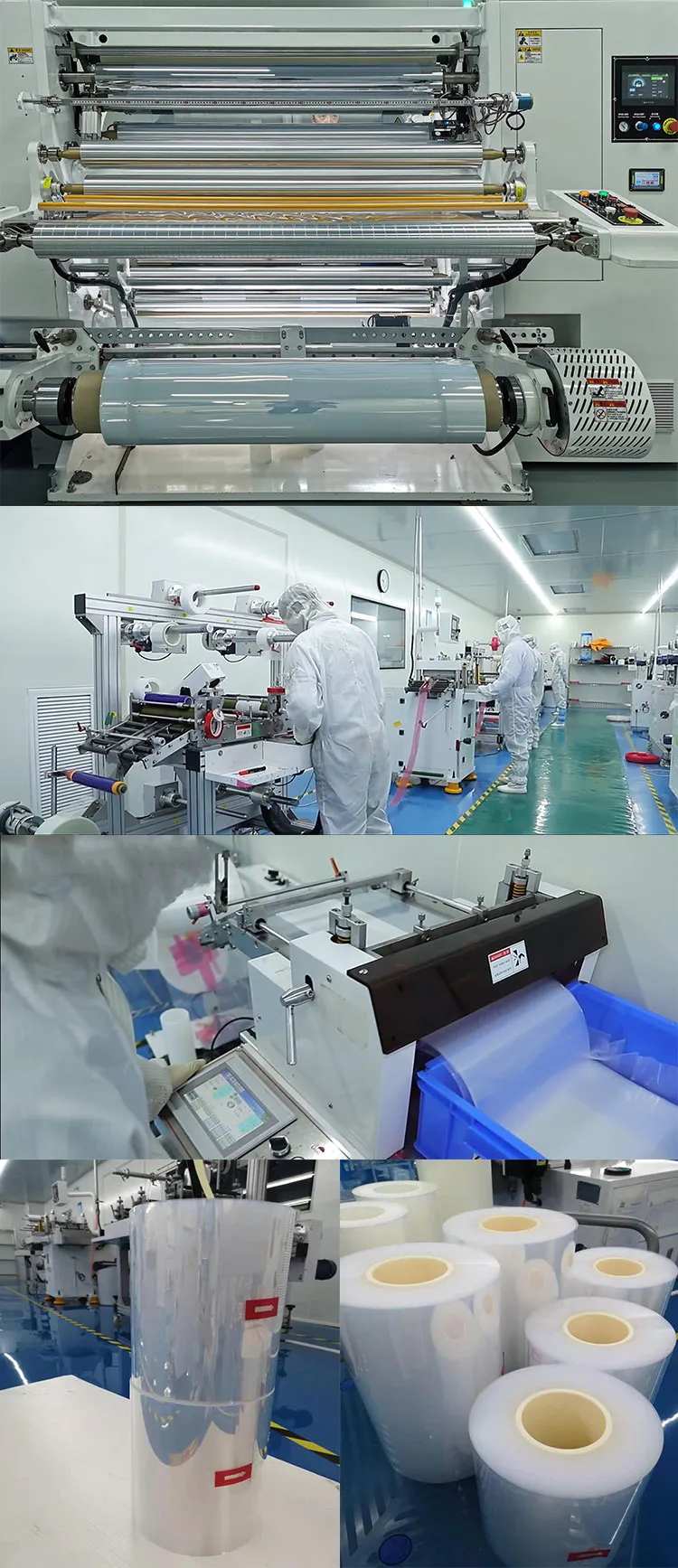

▶ Smart Manufacturing Assurance: AI defect detection + in-line nano-coating monitoring, ensuring batch consistency CPK ≥ 1.67.
